Automatización industrial del PLC
>
|
| Lugar de origen | Japón |
| Nombre de la marca | Panasonic |
| Número de modelo | MHMF082LJC2M |
|
Part Number |
MHMF082L1C2M |
|---|---|
|
Product |
Servo Motor |
|
Details |
High inertia, Lead wire type |
|
Product Name |

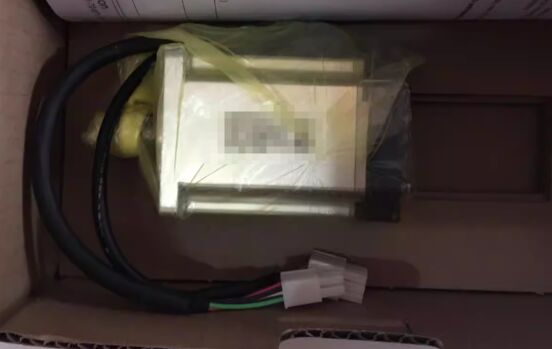

MINAS A6 Family Servo Motor |
|
Features |
50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz |
| Item | Specifications |
|---|---|
| Part Number | MHMF082L1C2M |
| Product details | High inertia, Lead wire type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Special Order Product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange size (mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.8 |
| Voltage specifications (V) | 200 |
| Rated output (W) | 750 |
| Rated current [Reference value] (A rms) | 3.8 |
| Holding brake | without |
| Mass (kg) | 2.3 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 2.39 |
| Continuous stall torque (N ⋅ m) | 2.86 |
| Momentary Max. peak torque (N ⋅ m) | 8.36 |
| Max. current [Reference value] (A 0-p) | 18.8 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 6000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 1.56 |
| Recommended inertia ratio | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
